4 controllo di velocità del motore monofase del regolatore 220V di velocità del motore dell'ingranaggio di velocità ISO9001
Dettagli:
| Luogo di origine: | La Cina |
| Marca: | Wanshsin |
| Certificazione: | ISO9001 |
| Numero di modello: | WX-K |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto del cartone |
| Tempi di consegna: | 3-5 giorni lavorativi |
| Termini di pagamento: | L / C, T / T, Western Union |
| Capacità di alimentazione: | 20.000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Tipo: | Regolatore multifunzionale di velocità | Regolamento di velocità: | Chiave del pannello/potenziometro del pannello |
|---|---|---|---|
| Frequenza: | 50Hz/60Hz | Potere applicabile del motore: | 6W-200W |
| Condensatore corrente: | Accessorio | Gamma di velocità: | 50Hz: 90-1300rpm, 60Hz: 90-1600rpm |
| Tensione: | CA di monofase 220V | Velocità il cambiamento: | 5% |
| Evidenziare: | 4 regolatore di velocità del motore dell'ingranaggio di velocità ISO9001,regolatore di velocità del motore dell'ingranaggio di monofase 220V,Controllo di velocità del motore monofase di ISO9001 220V |
||
Descrizione di prodotto

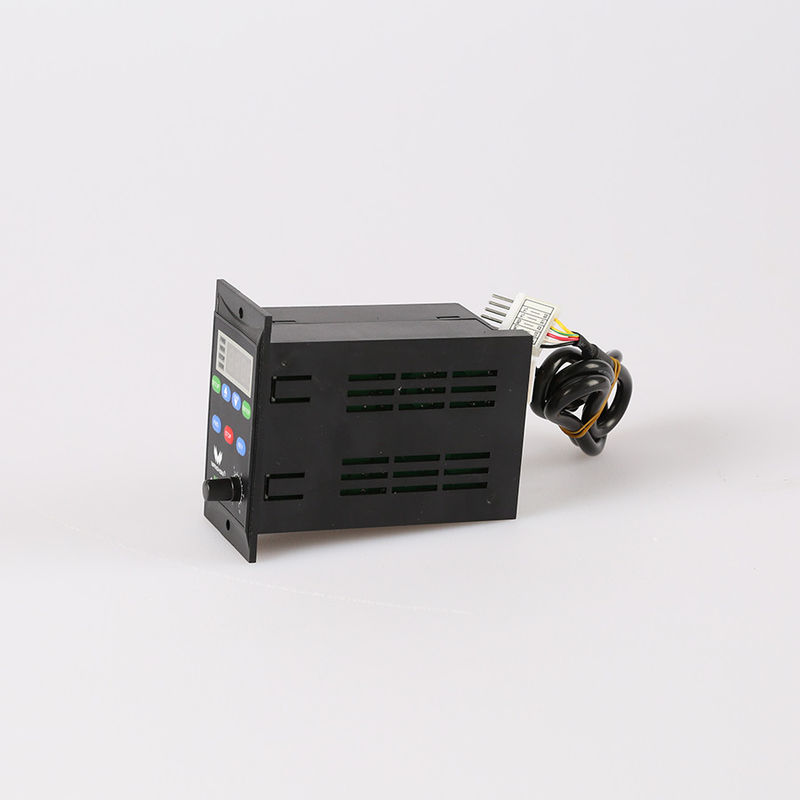

WX-K Multi-Function Gear Motor Speed Controller 4 Speeds Single Phase 220V AC
Product Features
1 Achieve continuously variable transmission in a wide range, when combined with variable speed motor.
2 Feature-rich, enabling slow acceleration, slow deceleration and motor stall protection.
3 The capacitor for speed governor running is mounted directly inside the speed controller, featuring neat and convenient wiring.
Type parameter table
| Type | WS-P | WS-L | WX-K |
| Installation method | Panel type | Digital display panel type | Multi-Function digital panel type |
| Speed control method | Panel Potentiometer | Panel Key/Panel Potentiometer | Panel Key/Panel Potentiometer |
| Power voltage | Single-phase 220V AC | Single-phase 220V AC | Single-phase 220V AC |
| Functions |
Speed control, slow deceleration, slow acceleration, locked rotor protection |
Speed control, slow deceleration, slow acceleration, electromagnetic brake, locked rotor protection, panel control forward and reverse, speed display, panel buttons, control with memory, magnification setting and external switches K1 and K2 can be directly connected to PLC control. | Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control. |
|
Applicable motor power range |
6W~200W | ||
| Running capacitor | Built-in | ||
| Power frequency | 50/60Hz | ||
| Speed range | 50Hz:90~1300r/min 60Hz:90~1600r/min | ||
| Speed variation rate | 5% | ||
| Electromagnetic brake time | 0.4 seconds | ||
| Applicableenvironment | -10℃~+40℃ non-freeze;<85% non-condensation | ||
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
